Shotcrete refractory gunning gunite machine for swimming pool
Shotcrete refractory gunning gunite machine for swimming pool are mainly used in steel mills to spray refractory castable materials. Compared to typical dry mix shot cleat machines, the lightweight insulated castable refractory gun machine also includes a high pressure water pump, a new type of pre-attenuation nozzle assembly, an ABB frequency converter and more.
High pressure water pumps are used to supply high pressure water to a new type of pre-humidity nozzle assembly. The nozzle assembly has one water ring, and high pressure water is sprayed through a small hole in the water ring. That way, the water can mix with the material and achieve the best spray effect. The ABB frequency converter is used to adjust the motor speed and further control the output of the refractory gunite machine from 1m3 / h to 3m3 / h. When the machine is up and running, the output is high, so low output can effectively avoid blocking.
Currently,refractory gunning gunite machine for swimming pool includes electric motor refractory guns and all-pneumatic refractory guns. Every refractory gun machine requires an air compressor to supply compressed air.
Shotcrete refractory gunning gunite machine for swimming pool do not require power supply and are suitable for use in remote worksites. Most customers’ operating voltages are different from ours. You can customize the appropriate voltage motor according to your requirements. We can offer WZ-3ER (3m3 / h), WZ-3A (3m3 / h) and WZ-5ER (5m3 / h) as customer options.
Sealing plates and steel rotor plates are an important part of castable refractory gun machines, and we provide high quality sealing plates and steel rotor plates for our machines. Normally, the service life of the seal plate is about 300 m3, and the service life of the steel rotor plate is about 20000 m3.
Due to the fast construction speed, high efficiency, high quality and other important advantages of thermal spraying, castable refractories are widely used in industrial fireproof refractory layers for thermal spray repair work.
Shotcrete refractory gunning gunite machine for swimming pool has the following obvious advantages:
- Fireproof spray concrete machine with mixing, transportation and spraying functions.
- Improved quality of castable insulation, construction speed, saving labor.
- Thermal spray metallurgy and industrial furnaces widely used in steelworks.
4, Castable refractory gun machine is a stereotype of product, high quality, durable, wear parts rotating plate, sealing plate, spray gun and other accessories are in stock.
When using our lightweight insulated castable refractory gun machine, simply add water to the nozzle. The castable refractory gun machine is equipped with a high pressure water pump for spraying high pressure water and nozzles. At the same time, the castable refractory gun machine is equipped with a new type of pre-dumping nozzle assembly that has a lower repulsion rate and less dust than other common nozzles, thus adding less water. Equipped with ABB inverter, the output of refractory adhesive can be adjusted according to the customer’s project requirements.

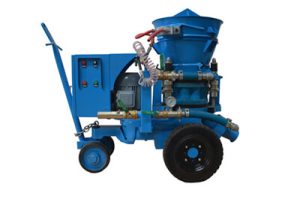

The WZ-3ER refractory gunning gunite machine is specially designed for spraying refractory materials. Machines equipped with ABB variable frequency can realize variable output and effectively avoid material clogging due to pipeline phenomenon. It is also equipped with a dust collection bag, which significantly reduces dust and protects the health of workers.
