WMA20 Automatic mixing plant with HCS17B cement silo
Description:
HCS17B Horizontal Cement Silo is designed based on 20ft container size. It can be stored in standard container directly. Save shipping costs. More container silos can be stacked together to work.
WMA20 Automatic Mixing Plant is making reference to, was mainly conceived in order to obtain, through a high turbulence mixing of water and cement powder, a cement mixture (cement grout), or, by using water and bentonite powder, a bentonite sully for plastic muds. Also, the preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component (for every screw conveyor).
Features
CEMENT SILO
♦Upper recalling dipstick(2) and lower recalling dipstick(2)
♦Dust collector(1)
♦Pressure relief valve(2)
♦OLI-WOLONG Vibrator(6)
Automatic Mixing Plant
♦High-speed Colloidal Grout Mixer
♦Main pipeline valves are all pneumatic valves
♦Mixture, cycling pump, and agitator have automatic cleaning function
♦Cement can be added by cement silo or screw feeder automatically
♦The preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component
♦Two modes of operation： fully automatic mode and manual mode
♦Easy to operate and maintain
♦Up to 5mm particle size
♦Equipped with some ceiling lamps, for illuminating the different working areas.
♦Can be placed directly in the 20ft cabinet
Technical Parameter
| Specification : | |||
|
♦Two modes of operation： fully automatic mode and manual mode. ♦Automatic cleaning system. ♦The preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component. ♦Can be placed directly in the 40ft cabinet. |
|||
| HCS17B Cement Silo | |||
|
Volume |
17m³ | Conveying | 40t/h |
|
Inlet Dia. |
100mm | Outlet Dia. | 273mm |
|
Power |
18.5Kw | Power supply | 380V,50Hz |
|
WMA20 Mixing Plant |
|||
| Mixer | Agitator | ||
| Volume | 1000L | Volume | 1100L |
| Flow | 1200L/min | Speed | 25r/min |
| Max. output | 20m³/h | Level sensor | Damped rotation controller |
| Power | 15Kw | Power | 3.0Kw |
| Air supply system | Water supply system | ||
| Flow | 300L/min | Water tank volume | 750L |
| Pressure | 0.8MPa | Flow@lift | 9.03L/s@27.5m |
| Power | 3.0Kw | Power | 3.0Kw |
| Power supply | 380V, 50Hz | ||
|
Date: 1. All data are tested by water. 2. We can customize products according to your requirements. |
|||
Application
WMA20 Automatic mixing plant with HCS17B cement silo, grouting in strengthening weak foundations such as new buildings, highways, high-speed railways, and underground railways. It is also used for uneven settlement treatment of old buildings, deep prevention curtains, soil retaining cofferdams, mine leakage prevention, well barrel protection arms, slope anchoring, and other aspects of reservoir dams and underground construction projects.

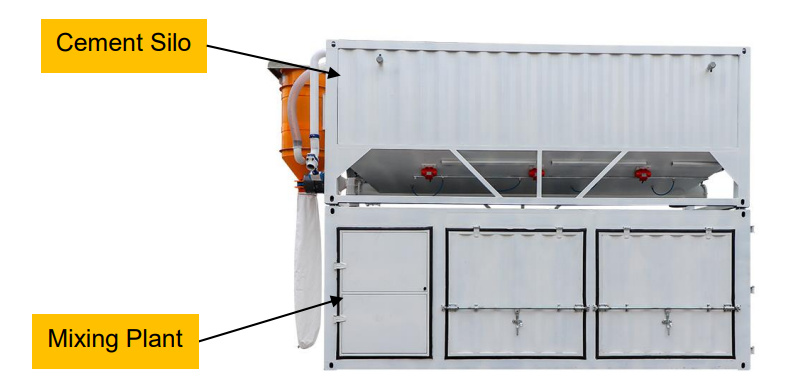

Mixing Plant can be worked under Container Silo. 20ft and 40ft container silos both are provided.
