WMA400-700AW Auto Grout Mixing Station For Soil Nails
Description:
WMA400-700AW Auto Mixing Station is a combination of Screw feeder, mixer, agitator and Auto weighing system based on PLC in one base frame. It is mainly used to be made the cement or bentonite slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
Features
High-Speed, High-Shear Colloidal Mixer cause a vortex flow to ensures mix quickly and evenly. Compared with the traditional manual operation mode, this station has added the automatic operation mode, which greatly improves the working efficiency.Compact size and it is easy to operate. It also takes up a small space.
Technical Paremeter
|
Specification (with Electric motor drive): |
|||
|

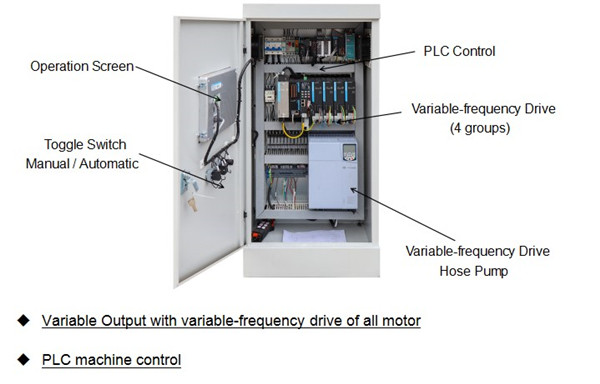

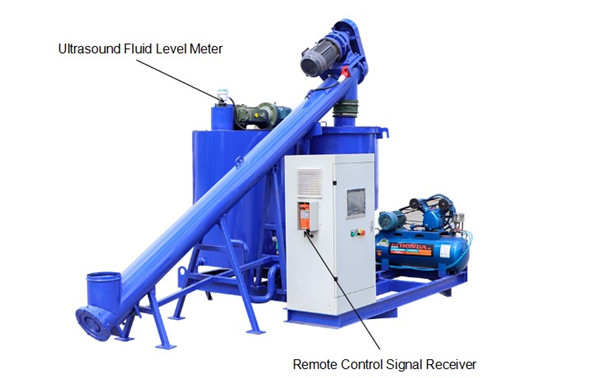

1.Pneumatic Pinch Valve: the slurry flows more smoothly. 2.Ultrasound fluid level meter: height of agitator can be accurately measured. 3.Variable-frequency Drive: all motor can be output with variable-frequency 4.PLC+Touch Screen : Manual mode and Fully Automatic mode 5.Remote control : Control hose pump: Start, Stop, Accelerate, Deceleration |
|||
|
Mixer |
Effective volume |
400 L |
|
|
Max.Mixing Capacity |
10 m³/h |
||
|
Centrifugal Pump
|
Motor Power |
7.5 Kw |
|
|
Rotating Speed |
1450 r/min |
||
|
Circulation Capacity |
1400l/min |
||
|
Agitator
|
Effective volume |
700L | |
|
Motor Power |
2.2 Kw |
||
|
Water Supply System
|
Motor Power |
1.5 Kw |
|
|
Displacement |
8.8 m³/h |
||
|
Head |
21.5 m |
||
|
Air Supply System |
Motor Power |
1.5 Kw |
|
|
Displacement |
0.15 m³/h |
||
|
Control System |
Mode |
PLC |
|
|
Power |
DC 24V |
||
|
Dimension(L×W×H) without Screw @Weight |
2500×2100×1900mm@1000Kg |
||
|
Dimension(L×W×H) with Screw @Weight |
3800×2100×2720mm@1280Kg |
||
|
We could also customize according to your demands. |
|||
Application
WMA400-700AW Auto Grout Mixing Station For Soil Nails is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
