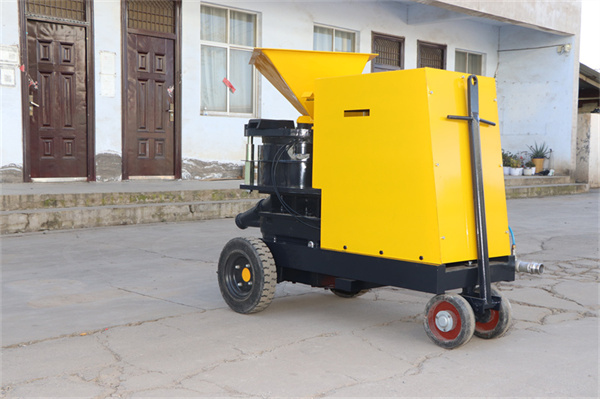

WSZ-10S/E Explosion-Proof Wet and Dry Shotcrete Machine
Description:
WSZ-10S/E Shotcrete machine is a multifunctional rotor type machine for wet and dry spraying and conveying. The materials that can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
Compared with traditional shotcrete machines, WSZ-10S/E has the advantage of being lighter and more compact. In addition, WSZ-10S/E is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plates, longer service life and better sealing effect.
Product Description
WSZ-10S/E Shotcrete machine is a multifunctional rotor type machine for wet and dry spraying and conveying. The materials that can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
Compared with traditional shotcrete machines, WSZ-10S/E has the advantage of being lighter and more compact. In addition, WSZ-10S/E is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plates, longer service life and better sealing effect.
Features
1. Theoretical displacement can be adjusted.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Equipped with an automatic lubrication system, the rubber plate has a longer service life.
5. For concrete repair, slope stabilization, excavation support or mining.
6. Light and compact machine design.
Technical Parameter
|
Name |
Data |
|
Machine Type |
WSZ-10S/E |
|
Power supply |
AC380V 50Hz three-phase |
|
Motor power |
7.5kw |
|
Air consumption |
10 m3/min |
|
Working pressure |
0.2Mpa |
|
Rotor speed |
12.3rpm |
|
Rotor size |
14.5 liters |
|
Theoretical output |
10m3/h |
|
Recommended hose size |
D64mm |
|
Max. aggregate size |
20mm |
|
Max. conveying distance in m horizontal/vertical |
Dry: 200m/100m |
|
Wet: 40m/15m |
|
|
Dimensions |
Length 1950mm |
|
Height 1375mm |
|
|
Width 856mm |
|
|
Weight |
1000 Kg |
|
Based on a theoretical filling level of 100%. Prior to use or processing, always consult the current product data sheet of the products used |
|
|
We could also customize wet & dry type rotary shotcrete pump according to your demands. |
|
| 1 | Modify clamp |
| 2 | Rotor |
| 3 |
Upper rubber plate |
| 4 | Hopper seat |
| 5 |
Lower rubber plate |
| 6 | Clamp |
Application
WSZ-10S/E explosion-proof wet and dry shotcrete machine is installed into the TBM for the pneumatic conveyance of peagravel when tunneling with a TBM, as well as it is widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, etc.
