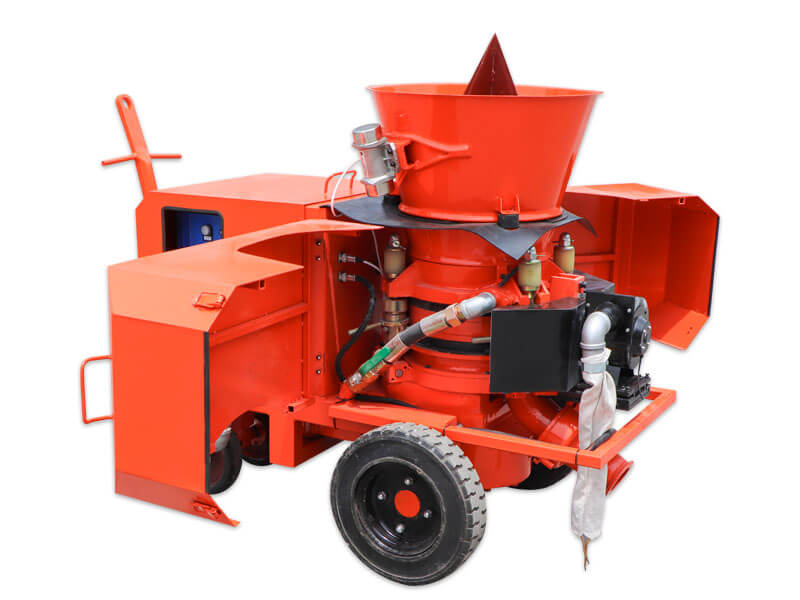

WZ-1.5ER Refractory concrete spray machine for sale

Description:

WZ-1.5ER Refractory concrete spray machine for sale with air compressor uses compressed air to spray a certain proportion of refractory materials at a high speed to form a refractory layer on the surface of the sprayed masonry.

WZ-1.5ER Refractory concrete spray machine for sale is mainly suitable for concrete spraying and support construction of tunnels, culverts, subways, hydropower projects, underground projects, mine roadways, highway slope protection, etc.

Browse video

Catalogue download

Mobile Phone: +86-19913803800

E-mail: sales@wodetec.com

GET PRICE Send E-mail

Features Technical Paremeter Application Inquiry

Features

WZ-1.5ER Refractory concrete spray machine for sale

$refractory concrete spray machine for sale$

Bag Cutter and High Hopper with vibrator.

$refractory concrete spray machine$

$refractory concrete spray machine$ Equipped with collect dust system, environmental friendly.

Heavy duty solid wheels, easy to move in harsh conditions.

$refractory concrete spray machine$

Technical Paremeter

Specification (with Electric motor drive)

Output Capacity	0.7~3m3/h
Max. Aggregate size	10mm
Conveying Pressure	0.2~0.4Mpa (29-58PSI)
Conveying Hose Inner Diameter	32/38mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	5~6m³/min(180-215CFM)
Motor Power	4kW
Conveying Distance	60m (Vertical)
Conveying Distance	200m (Horizontal)
Material Charging Height	1.16m
Rotor Speed	7r/min, continuous spraying
Weight	660kg
Overall Dimension	1600×840×1300mm
Note: Air motor full pneumatic for option.

Application

$refractory spraying gunite machine manufacturers$
