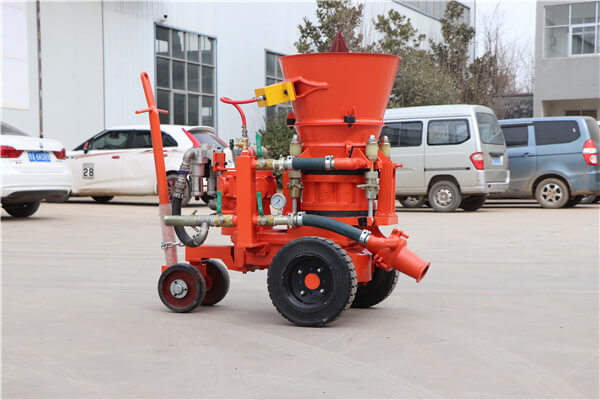

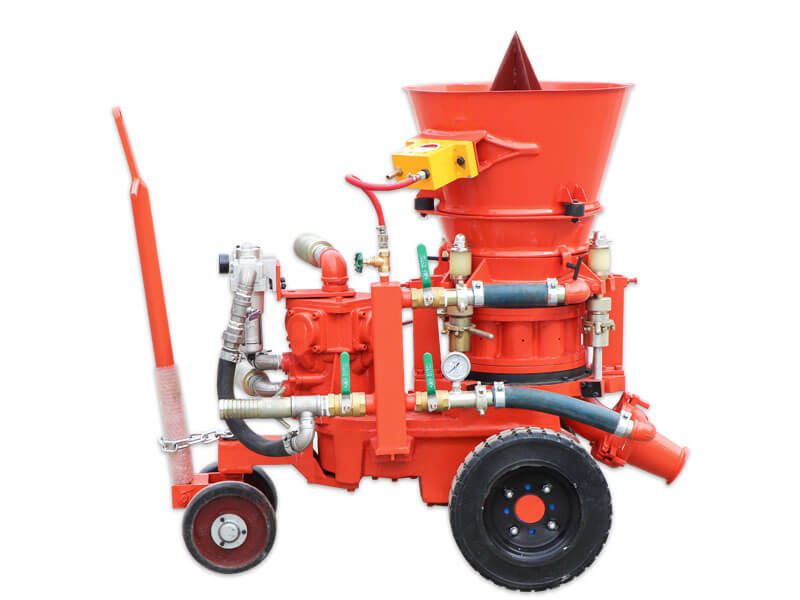

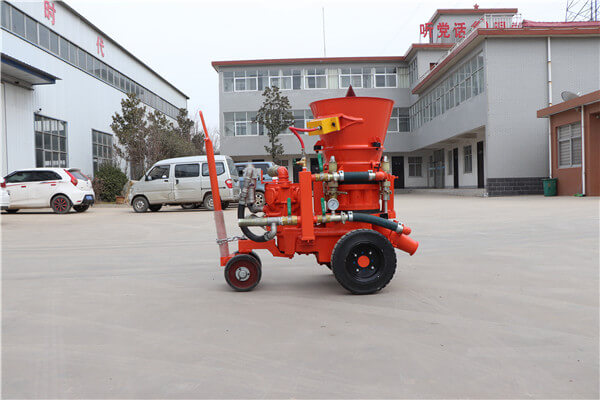

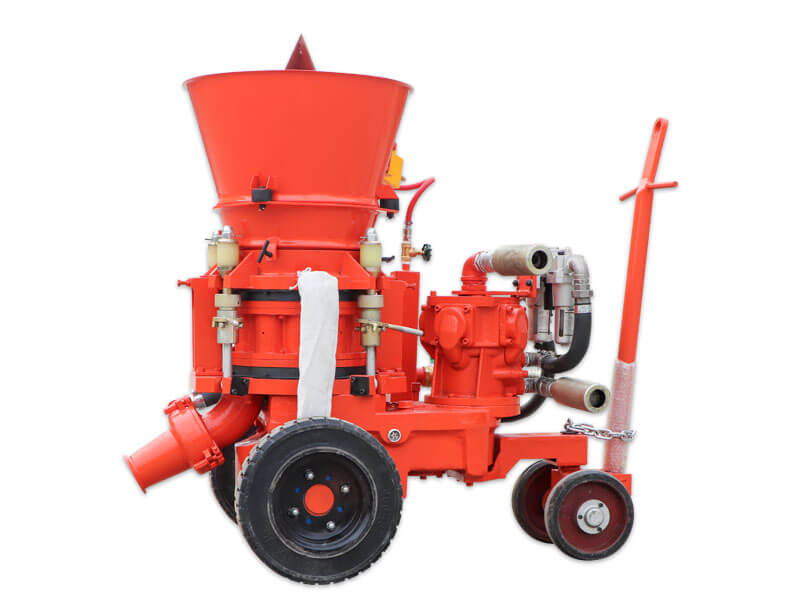

WZ-3A Factory price dry mix shotcrete machine for mining
Description:
WZ-3A Factory price dry mix shotcrete machine for mining is small-sized shotcrete machine for the dry spraying process.WZ-3A shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc
Features
- 5D four-cylinder piston air motor, more powerful;
- Don’t need electric power supply, suitable for remote working site;
- Steady flowof materials, variable output capacity;
- Electric motor and diesel engine drive for option.
Technical Paremeter
WZ-3A Factory price dry mix shotcrete machine for mining
|
Output Capacity |
1.5~3m3/h |
|
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
|
Max. Aggregate size |
10mm |
|
Conveying Pressure |
0.2~0.4Mpa (29-58PSI) |
|

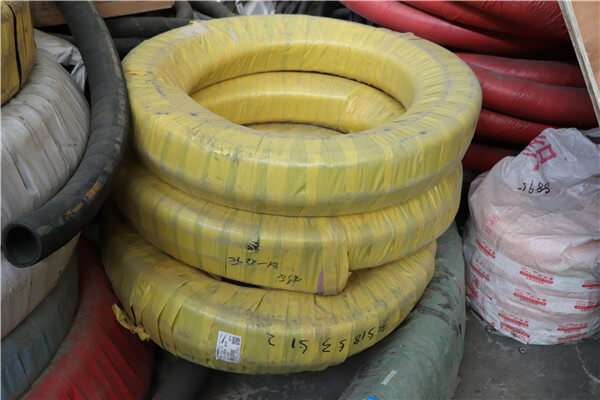

Conveying Hose ID |
38mm |
|
Air Consumption for conveying material |
5~6m3/min(180-215CFM) |
|
Air Motor Type |
TMH5.5D |
|
Air Motor Air Pressure |
0.5MPa(71PSI) |
|
Air Motor Air Consumption |
6.5m3/min(230CFM) |
|
Conveying Distance |
60m (Vertical) |
|
Conveying Distance |
200m (Horizontal) |
|
Material Charging Height |
0.9m |
|
Rotor Speed |
14r/min |
|
Weight |
430Kg |
|
Overall Dimension |
1130×540×1020m |
|
Note: Electric motor and diesel engine for option. |
|

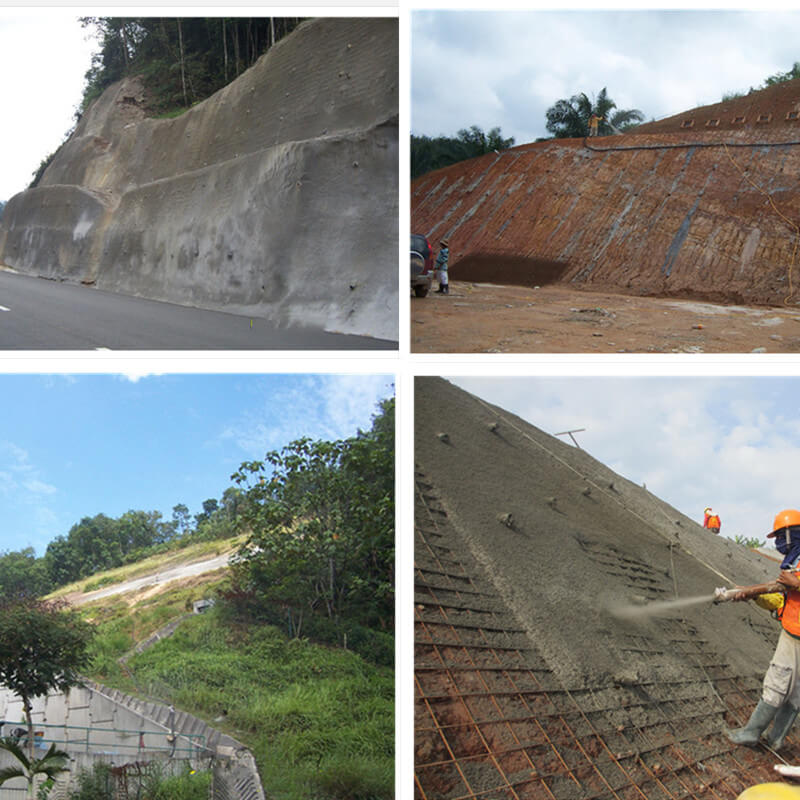

Application
