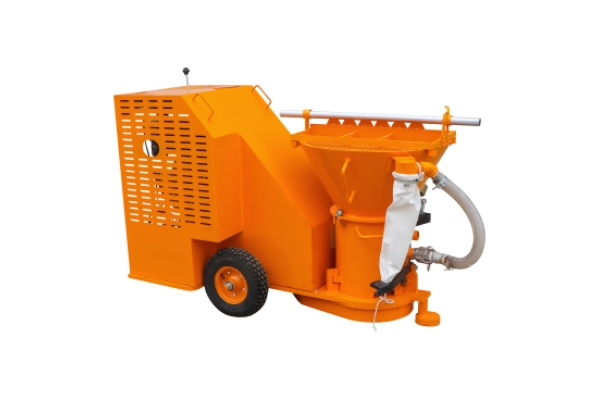

WZ-6DR/RD Diesel engine driven gunite machine refractory spraying machine
Description:
WZ-6DR/RD Diesel Engine Driven Gunite Machine provides a steady flow of material which allows uniform hydration and very smooth spraying.
The adjustable output of the material may be increased without sacrificing the quality of the application. The compact WZ-6DR/RD is capable of spraying through 38mm inner diameter conveying hoses. Widely used in refractory spraying and installing projects.
WZ-6DR/RD uses a diesel engine to rotate the machine’s material feed bowl. An air compressor is required to convey material from the feed bowl to the nozzle.
Features
WZ-6DR/RD Diesel engine driven gunite machine refractory spraying machine
WZ-6DR/RD Diesel Engine Driven Gunite Machine provides a steady flow of material which allows uniform hydration and very smooth spraying.
The adjustable output of the material may be increased without sacrificing the quality of the application. The compact WZ-6DR/RD is capable of spraying through 38mm inner diameter conveying hoses. They are widely used in refractory spraying and installing projects.WZ-6DR/RD uses a diesel engine to rotate the machine’s material feed bowl. An air compressor is required to convey material from the feed bowl to the nozzle.
Technical Parameter
Specification (with diesel engine drive)
| Model | WZ-6DR/RD |
| Maximum output | 6m³/hr |
| Hopper capacity | 80L |
| Max. aggregate size | 10mm |
| Feed bowl pocket number | 16 |
| Hose ID | 38mm |
| Diesel engine power | 8.2KW |
| Cooling | Air |
| Diesel tank capacity | 6L |
| Dimension | 1600×800×980mm |
| Weight | 420Kg |
Maximum theoretical performance is shown above. Actual performance will vary depending on the slump, mix design, and delivery line diameter. Specifications are subject to change without prior notice.
① The dry material is fed through the hopper down into the pockets of the rotary feed wheel below.
② The rotary feed wheel, driven by a heavy-duty oil bath gear drive, rotates the mix under the conveying air inlet and material outlet.
③ With the introduction of compressed air, the mix is evacuated from the feed wheel pockets and then travels through the outlet and into the hoses.
④ The dry mix material is then conveyed in suspension through hoses to the nozzle, where water is added, and the water and dry material mix.
Application
♦ Refractory Spraying;
♦ Structural Concrete Repair;
♦ Slope Stabilization;
♦ Tunnels and Mine Support;
♦ Pools and Spas;
♦ Retaining and Fire Walls;
♦ Dams and Reservoirs;
♦ Sand and Gravel Backfill.
