WGP500/2000/165H-E grout plant price

Description:

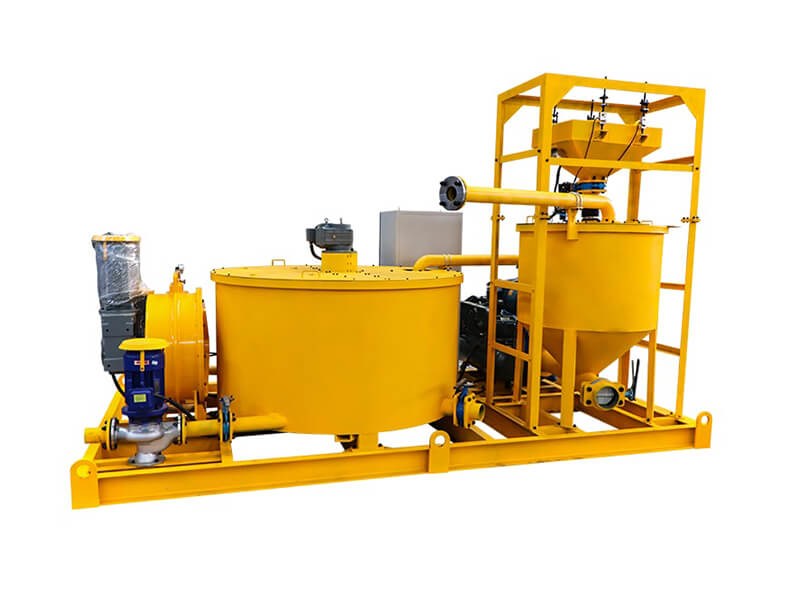

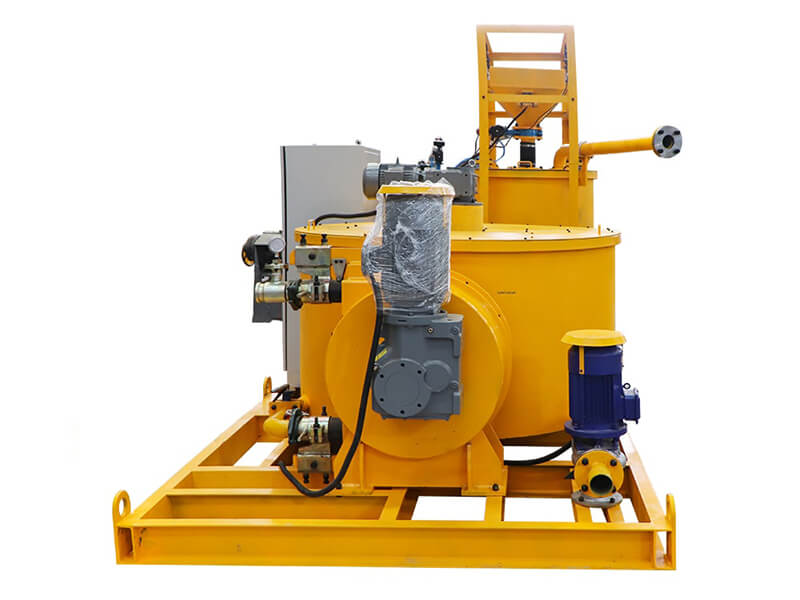

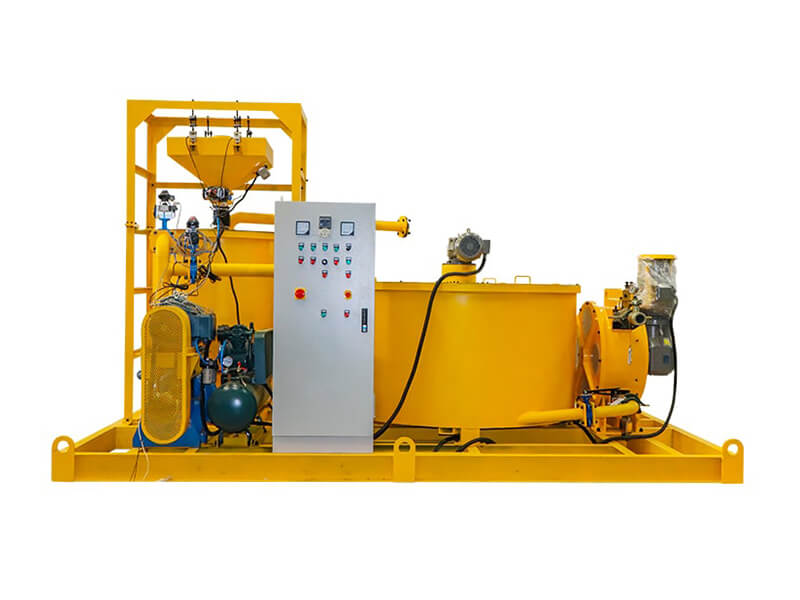

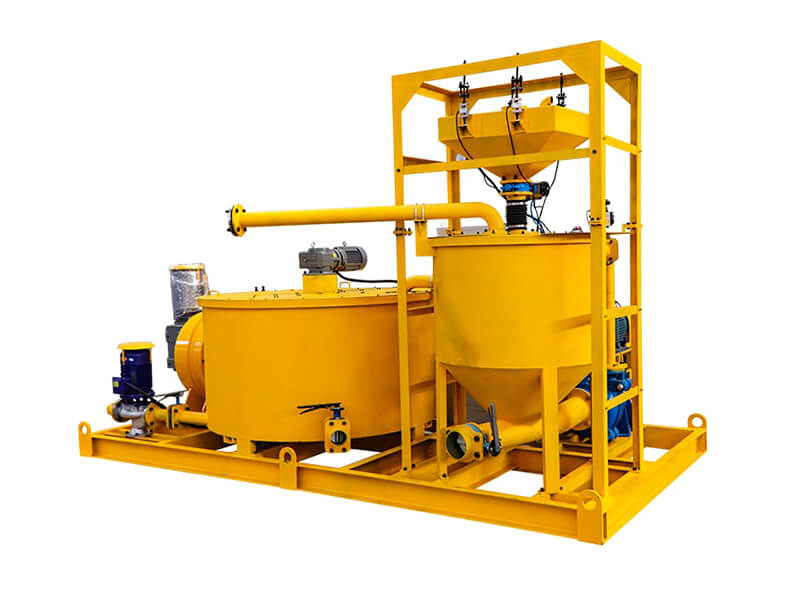

WGP500/2000/165H-E grout plant is a combination of the mixer, agitator and grouting pump in one plant, this grout plant unit is mainly used to mix cement, bentonite slurry for grout and backfill grout injection in ground and underground construction or TBM tunnel construction, such as highways, railways, water and electricity, construction, mining etc. If you want to get grout plant price, you can tell us freely, email address: sales@wodetec.com

WGP500/2000/165H-E grout plant is equipped the automatically batching weight system and PLC control system to automate operations. Compact size and it is easy to operate. It also takes up a small space.

Browse video

Catalogue download

Mobile Phone: +86-19913803800

E-mail: sales@wodetec.com

GET PRICE Send E-mail

Features Technical Paremeter Application Inquiry

Features

1. High turbulence mixing.

2. Heavy duty industrial hose pump.

3. Automatically batching and automatically mixing system grout plant.

4. Mixer, agitator, hose pump in one frame base, compact size.

5. PLC control system, operation mode can be operated automatically and manually.

Technical Paremeter

Type		WGP500/2000/165H-E
Weighting	Sensor	S-type tension pressure sensor
	Load	200Kg
	Output Signal	Current signal
	Vibration Motor	24V, 4KN, 0.37Kw
Mixer	Volume	500L
	Slurry Pump Power	11Kw
	Output	80m3/h
Agitator	Volume	2000L
	Geared Motor Power	3Kw
	Speed	45rpm
	Water Pump Output	15m3/h
	Water Pump Power	5.5Kw
Hose pump	Output	165L/min
	Pressure	1.0MPa
	Power	7.5Kw
Air compressor		2.2Kw
Power supply		220V(380V, 415V Multiple choices)
Dimension		4100×2100×2500mm
Weight		3200Kg
We could also customize grout plant according to your demands.
