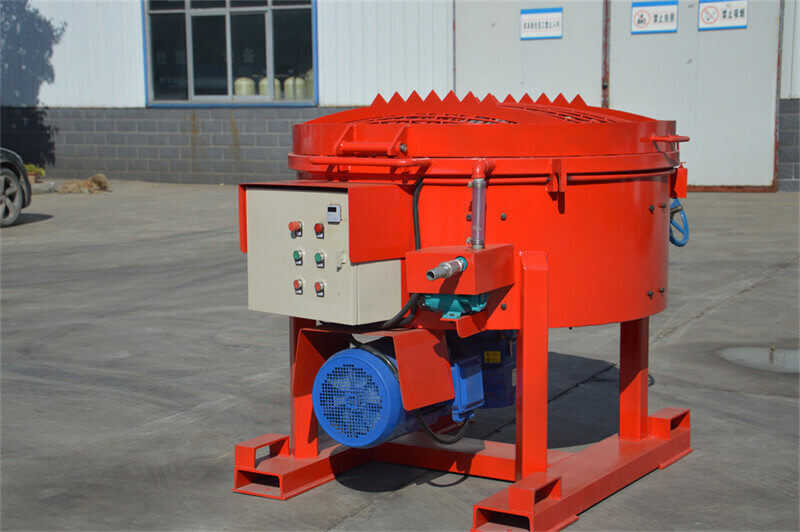

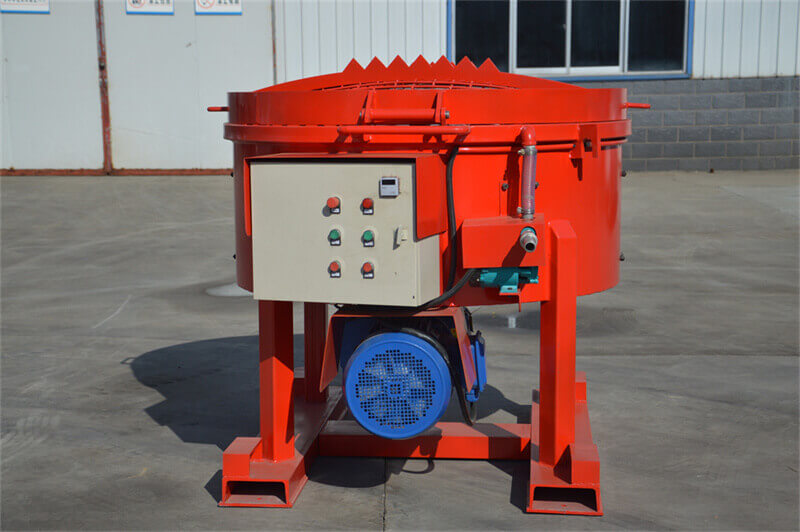

WRM Refractory Pan Mixer
Description:

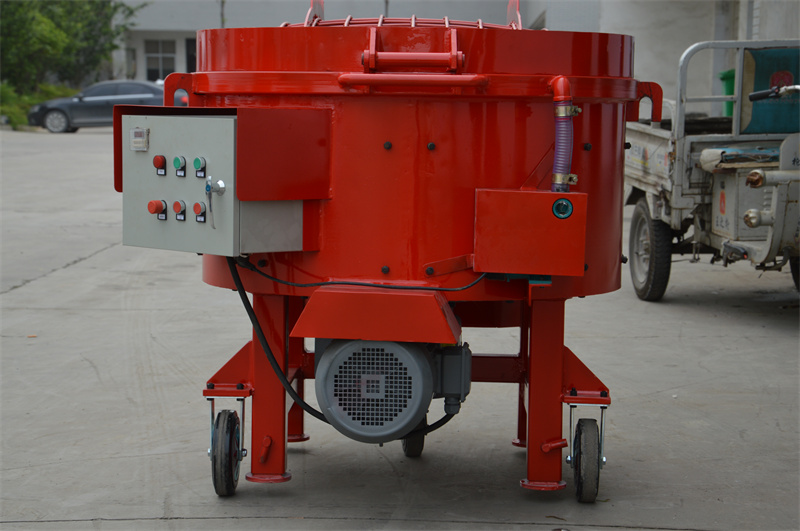

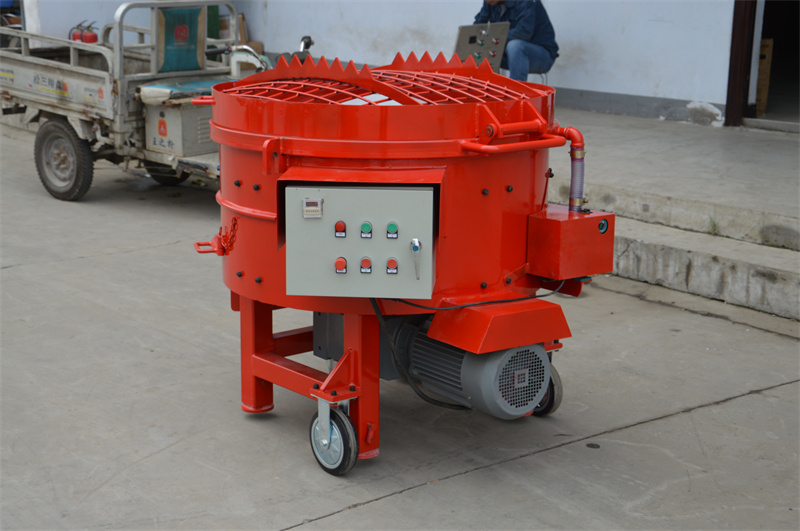

WRM refractory pan mixer is specially designed for mixing refractory, castables materals etc. Which is available in a stationary or pratical mobile design, is characterised by top performas. In order to ensure easy to move in the working site, WRM100 and WRM250 refractory pan mixer is equipped with walking wheel, WRM500 have forklift hole in the frame. There is high wear-resistant steel liner in the mixer bottom and inner wall, five pieces different purpose mixing arm could make refractory materials mix evenly and void sticking.
Features
★ Pan mixer;
★ Special designed for site operation;
★ Fast mixing speed and homogenous;
★ Compact structure;
★ Comfortable feeding height;
★ Easy to move;
★ With bag breaker;
★ Water spray nozzles;
★ Low maintenance cost.
Safety Feature:
If the top lid door is opened in between the operation, machine can stop automatically. Because there is a limit switch between the top lid door and the hopper, once the top lid is opened, the power will cut off automatically and confirm the safety for operator.
Technical Parameter
|
Item |
WRM100 |
WRM250 |
WRM500 |
|
Mixing capacity |
100kg |
250kg |
500kg |
|
Rotating speed |
33rpm |
34rpm |
36rpm |
|
Motor Power |
4kw |
7.5kw |
11kw |
|
Feeding Height |
1100mm |
1200mm |
1300mm |
|
Dimensions (mm) |
1400x1300x1100 |
1480x1380x1230 |
1700x1250x1350 |
|
Weight |
550kg |
650kg |
1010kg |
|
Note： Technical data may change due to technical progress， subject to modification without notice. |
|||
Packing and Delivery
Application
WRM refractory mixer is used for mixing refractory materials, castables, friction materials, chemical materials, precast concrete, mortar, aggregate mixing and glass materials, etc. Could work together with refractory wet shotcrete machine, used for refractory materials spraying projects in the steel industry.
