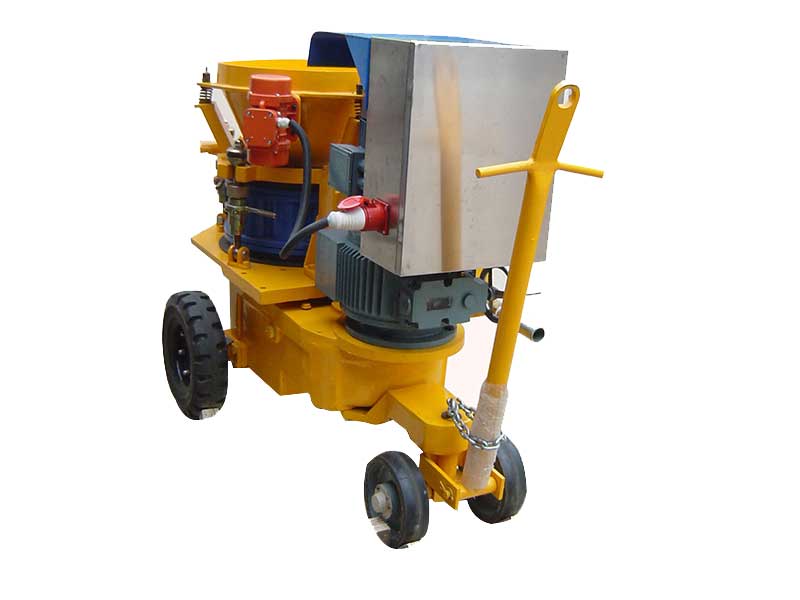

WSZ3000V variable dry and wet-mix concrete spraying machine/Shotecrete machine
Description:
WSZ3000V wet / dry-mix concrete shotcrete machine with variable output is an updated version, based the popular equipment in China. And it mainly is used for dry/wet spraying concrete. Compared with the popular equipment, it has easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Features
Technical Paremeter
WSZ3000V shotcrete machine with electric motor
|
Output Capacity |
3~5m3/h(wet) 3~9m3/h(dry) |
|
Max. Horizontal Conveying Distance |
35m (wet)/200m (dry) |
|
Max. Aggregate Size |
Φ15mm |
|
Conveying Hose Inner Diameter |
Φ51/Φ 64mm |
|
Concrete slump |
8~15cm |
|
Conveying Pressure |
0.2-0.6MPa(43-86PSI) |
|
Air Consumption for conveying material |
10~12m3/min(357-430CFM) |
|
Motor Power |
7.5kW |
|
Rotate speed |
5~12rpm |
|
Rebound |
≤10% |
|
Available Voltage |
220V, 380V, 440V, 660V, 50Hz/60Hz |
|
Overall Dimension(length×width×height) |
1.58×0.85×1.25m |
|
Net Weight |
950kg |
WH15-200 Dosing pump for pumping accelerator
|
Description |
Item |
|
Dosing Pump |
WH15-200 |
|
Speed |
12-58rpm |
|
Output |
70-321L/h |
|
Pressure |
6bar |
|
Hopper Capacity |
20L |
|
Power |
0.75Kw |
|
Reducer Model |
MBNL07-Y0.75-XL3-17-SX-B5 |
|
Overall Dimension |
700×700×850mm |
|
Weight |
75kg |
A complete set of WSZ3000V dry/ wet mix shotcrete machine
|
No. |
Description |
Quantity |
Unit |
Remark |
|
1 |
WSZ3000 Main Machine |
1 |
Set |
|
|
2 |
Nozzle Assy. |
1 |
Set |
|
|
3 |
Conveying Hose, ID64mm, 50ft.Length |
1 |
Piece |
|
|
4 |
Dosing pump squeeze hose |
1 |
Piece |
|
|
5 |
Rubber Hose Joint(long) |
1 |
Piece |
Fitting |
|
6 |
Rubber Hose Joint(short) |
2 |
Piece |
Fitting |
|
7 |
Quick Coupling |
3 |
Piece |
|
|
8 |
Upper Sealing Plate |
1 |
Piece |
|
|
9 |
Lower Sealing Plate |
1 |
Piece |
|
Application
It is mainly used for dry/wet spraying concrete. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
